8 Barycentric formula and divided differences

8.1 Previously…..

Interpolation, Taylor expansion, Lagrange interpolation,
Thm: there exists a unique polynomial \(p \in \mathcal P_n\) solving Lagrange interpolation problem on \(n+1\) distinct nodes,
Proof: uses Lagrange polynomials \(\ell_j(x) = \prod_{k\not=j} (x-x_k)/(x_j-x_k)\),
Error estimate: Taylor-like remainder estimate depending on derivatives of \(f\) and the node polynomial \(\ell_X(x) = (x-x_0)(x-x_1) \dots (x-x_n)\),

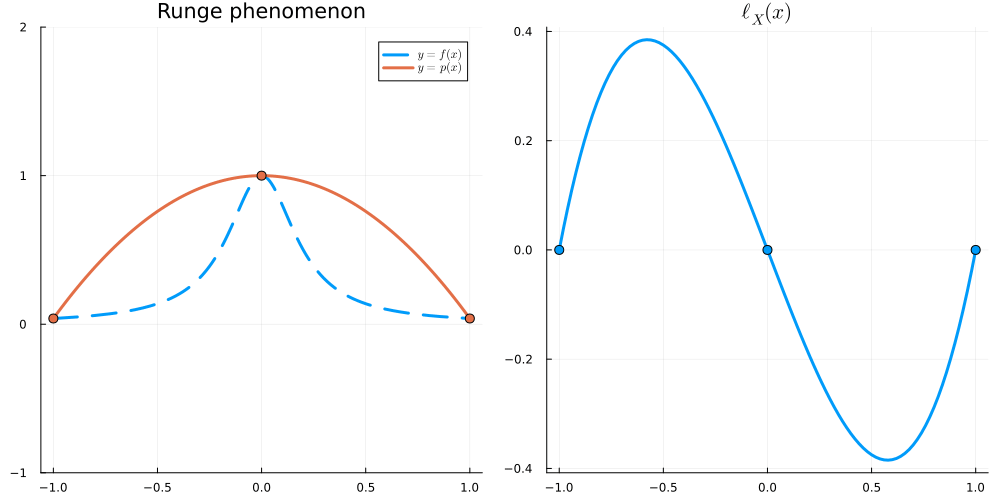

Runge: Equispaced points bad,

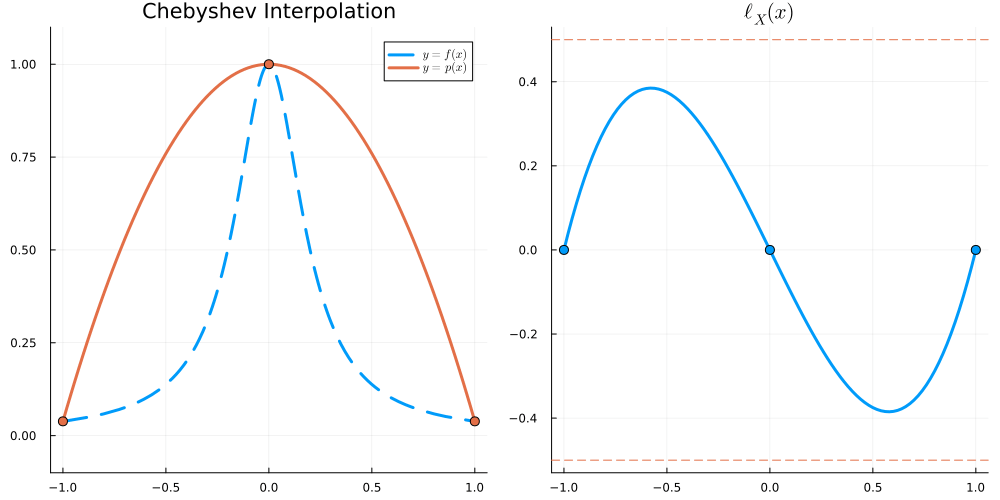

Chebyshev nodes much better,
Chebyshev nodes of the first kind minimise \(\| \ell_X \|_{L^\infty([-1,1])} = 2^{-n}\) (where \(X\) has \(n+1\) nodes),
Proof: Chebyshev polynomials (of the first kind) solve the Chebyshev problem,
Chebyshev nodes of the second kind give \(\| \ell_X \|_{L^\infty([-1,1])} \leq 2^{1-n}\),

8.2 Barycentric formula

See e.g. Berrut and Trefethen (2004) link for more details.

Exercise 8.1 Let’s use the formula

\[ \begin{align} I_Xf(x) &= \sum_{j=0}^n f(x_j) \ell_j(x), \\ % \ell_j(x) &:= \prod_{k\not=j} \frac{x - x_k}{x_j - x_k} \nonumber \end{align} \tag{8.1}\]

to compute the polynomial interpolation of \(f(x) = \frac1{1+25x^2}\) (Runge function, as above):

Code

Runge = t -> 1/(1 + 25t^2)

function ℓⱼ( j, t, x )
    if j == 0
        return prod( @. t - x[2:end] ) / prod( @. x[1] - x[2:end] )
    elseif j == length(x)-1
        return prod( @. t - x[1:end-1] ) / prod( @. x[end] - x[1:end-1] )
    else
        return prod( @. t - x[1:j] ) * prod( @. t - x[(j+2):end] ) / ( prod( @. x[j+1] - x[1:j] ) * prod( @. x[j+1] - x[(j+2):end] ) )
    end
end

function p_naive( t, x, y )
    r = 0
    for j in 0:(length(x)-1)
        r = r + ℓⱼ(j, t, x) * y[j+1]
    end
    return r
end

egrid = range(-1, 1, length=401)

anim = @animate for n ∈ [10, 20, 50, 100, 200, 400, 600, 700, 760, 780:20:1020...]
    x = @. cos( π*(0:n)/n )
    y = @. Runge( x )
    p = p_naive.( egrid, Ref(x), Ref(y) )
    err = @. max( abs( p - Runge(egrid) ), 1e-17 )

    plt1 = plot(Runge, -1, 1; label=L"y = f(x)", lw = 3, linestyle = :dash,
            title = "Naive Lagrange formula: n = $n", ylims = (-0.5, 1.5))
    plot!(plt1, egrid, p; label=L"y = p(x)", lw = 3 )
    scatter!(plt1, x, y; primary = false, markersize = 2, markerstrokewidth = 0)

    plt2 = plot(egrid, err; yscale = :log10, ylims = (1e-17, 1e2), legend = false, lw = 2,
            title = @sprintf("max error = %.2e", maximum(err)))
    plot( plt1, plt2; size=(1000, 500) )
end

gif(anim, "../images/Naive Lagrange.gif", fps = 1, show_msg = false)

What is happening here?

Notice also that, in order to compute (8.1), we need \(O(n^2)\) operations (flops) for each \(x\) - so it is slow and unstable!

Instead, we may use the Barycentric formula which we now derive. First notice that

\[ \begin{align} \ell_j(x) &= \prod_{k \not= j} \frac{x - x_k}{x_j - x_k} \nonumber\\ % &= \lambda_j \frac{\ell_X(x)}{x- x_j} \end{align} \tag{8.2}\]

where \(\lambda_j := \frac{1}{ \prod_{k \not= j} (x_j - x_k) }\). As a result, we have

\[ \begin{align} I_Xf(x) &= \sum_{j=0}^n f(x_j) \ell_j(x) \nonumber \\ % &= \ell_X(x) \sum_{j=0}^n \frac{\lambda_j f(x_j)}{x- x_j}. \end{align} \]

This is sometimes referred to as the first form of the Barycentric formula.

Exercise 8.2 Suppose that \(X = \{ x_0 < ... < x_n \}\) and let \(\ell_j\) be the corresponding Lagrange polynomials. Show that \(\sum_{j=0}^n \ell_j(x) = 1\) for all \(x\).

Therefore, using (8.2) and dividing by \(\sum_{j=0}^n \ell_j(x) = 1\), we obtain (for \(x \not\in X\))

\[ \begin{align} I_Xf(x) &= \left. \sum_{j=0}^n \ell_j(x) f(x_j) \middle/ \sum_{j=0}^n \ell_j(x) \right. \nonumber\\ &= \left. \ell_X(x) \sum_{j=0}^n \frac{\lambda_j f(x_j)}{x - x_j} \middle/ \ell_X(x) \sum_{j=0}^n \frac{\lambda_j}{x - x_j} \right. \nonumber\\ &= \left. \sum_{j=0}^n \frac{\lambda_j f(x_j)}{x - x_j} \middle/ \sum_{j=0}^n \frac{\lambda_j}{x - x_j} \right. \end{align} \tag{8.3}\]

which is known as the Barycentric formula.

For a fixed interpolation set, one may compute \(\lambda_j\) once and then evaluating \(p(x)\) requires only \(O(n)\) computations.

In fact, for Chebyshev nodes \(X_{\mathrm{II}} = \big\{ \cos \frac{j\pi}{n} \big\}_{j=0}^n\), we have a simple formula for the \(\lambda_j\):

\[ \lambda_j = \begin{cases} \frac{2^{n}}{4n} & \text{if } j = 0 \\ (-1)^j \frac{2^{n}}{2n} & \text{if } j = 1,\dots,n-1 \\ (-1)^n \frac{2^{n}}{4n} & \text{if } j = n \end{cases} \tag{8.4}\]

Exercise 8.3 Explain why one may instead consider any weights of the form \(w_j := C \lambda_j\) in the Barycentric formula (8.3). Why might this be a good idea? See (8.4) for the weights appearing in the Barycentric formula for Chebyshev nodes of the second kind.

In particular, for Chebyshev nodes of the second kind, we can use (8.3) with the weights \(w_j := (-1)^j \tau_j\) where \(\tau_j = \frac12\) for \(j=0, n\) and \(\tau_j = 1\) otherwise. Moreover, this formula has been proved to be numerically stable (Higham (2004)) which we demonstrate in the following:

Code

# Barycentric formula for Chebyshev nodes of the second kind:
function ChebyshevInterpolant( f, n )
    x = @. cos( π*(0:n)/n )
    y = @. f( x )
    λ = @. (-1.0)^(0:n)
    λ[1] /= 2
    λ[end] /= 2

    return function ( t )
        num = 0.0
        den = 0.0
        for j ∈ 1:(n+1)
            if t == x[j]
                return y[j]
            end
            num += λ[j] * y[j] / (t - x[j])
            den += λ[j] / (t - x[j])
        end
        return num / den
    end
end

egrid = range(-1, 1, length=401)

anim = @animate for n ∈ [10, 20, 50, 100, 200, 400, 600, 700, 760, 780:20:1020..., 1500, 2000, 5000, 10000]
    x = @. cos( π*(0:n)/n )
    p = ChebyshevInterpolant( Runge, n ).( egrid )
    err = @. max( abs( p - Runge(egrid) ), 1e-17 )

    plt1 = plot(Runge, -1, 1; label=L"y = f(x)", lw = 3, linestyle = :dash,
            title = "Barycentric formula: n = $n", ylims = (-0.5, 1.5))
    plot!(plt1, egrid, p; label=L"y = p(x)", lw = 3 )
    scatter!(plt1, x, Runge.(x); primary = false, markersize = 2, markerstrokewidth = 0)

    plt2 = plot(egrid, err; yscale = :log10, ylims = (1e-17, 1e2), legend = false, lw = 2,
            title = @sprintf("max error = %.2e", maximum(err)))
    plot( plt1, plt2; size=(1000, 500) )
end

gif(anim, "../images/Barycentric.gif", fps = 1, show_msg = false)

Exercise 8.4 Recall that the degree \(2\) polynomial interpolation of \(f(x) = \sin x\) on \(X = \{ x_0 < x_1 < x_2 \} = \{ 0, \frac\pi2, \pi \}\) is \(I_X f(x) = -\frac4{\pi^2} x(x-\pi)\). Write the Barycentric version of this formula (8.3).

Explain how you would have to update this formula if we added an extra point \(x_{3} = -2\pi\) to the interpolation set.

Solution

The Barycentric formula (8.3) depends on the weights \(\lambda_j = \prod_{k\not=j} (x_j-x_k)^{-1}\) which in this case are given by

\[ \begin{align} \lambda_0 &= \frac{1}{(0-\frac\pi2)(0-\pi)} = \frac2{\pi^2}, \nonumber\\ \lambda_1 &= \frac{1}{(\frac\pi2-0)(\frac\pi2 - \pi)} = -\frac4{\pi^2}, \nonumber\\ \lambda_2 &= \frac{1}{(\pi - 0)(\pi-\frac\pi2)} = \frac2{\pi^2} \end{align} \]

(which makes sense because \(\{ 0, \frac\pi2, \pi \}\) are Chebyshev nodes of the second kind scaled to \([0,\pi]\). The scaling only multiplies all of the weights by a common constant, which cancels in the Barycentric formula. In general, the Chebyshev weights can be chosen to be \(\frac12, -1, 1, -1, \dots, (-1)^{n-1}, \frac{(-1)^n}{2}\).)

Since \(f(x_{j}) = 0\) for \(j=0,2\), we have

\[ \begin{align} I_Xf(x) &= \left.\left( \frac{\lambda_0 f(x_0)}{x - x_0} + \frac{\lambda_1 f(x_1)}{x - x_1} + \frac{\lambda_2 f(x_2)}{x - x_2} \right) \middle/ \left( \frac{\lambda_0}{x - x_0} + \frac{\lambda_1}{x - x_1} + \frac{\lambda_2}{x - x_2} \right) \right. \nonumber\\ % &= \left.\left( \frac{-1}{x - \frac\pi2} \right) \middle/ \left( \frac{1/2}{x} + \frac{-1}{x - \frac\pi2} + \frac{1/2}{x - \pi} \right) \right. \end{align} \]

where, in the second line, we have multiplied all of the weights by \(\frac{\pi^2}{4}\) (which does not change the formula) to obtain the weights \(\frac12, -1, \frac12\).

We would have to update \(\lambda_{j}\) by dividing by \(x_{j} - (-2\pi)\) for each \(j=0,1,2\) so we get \(\lambda_0,\lambda_1,\lambda_2 = \frac{1}{\pi^3}, -\frac{8}{5\pi^3}, \frac{2}{3\pi^3}\) and write down

\[ \begin{align} \lambda_3 = \frac{1}{(-2\pi-0)(-2\pi-\frac\pi2)(-2\pi-\pi)} = -\frac{1}{15\pi^3} \end{align} \]

We plot both interpolants (using the Barycentric formula with the weights above):

Code

# Barycentric formula with the weights computed above
function bary( t, x, λ, y )
    i = findfirst( ==(t), x )
    isnothing(i) || return y[i]
    return sum( @. λ * y / (t - x) ) / sum( @. λ / (t - x) )
end

x2 = [0, π/2, π];        λ2 = [2, -4, 2] / π^2
x3 = [0, π/2, π, -2π];   λ3 = [1, -8/5, 2/3, -1/15] / π^3

plot(sin, -2π, 2π; label=L"y = \sin x", lw=2, linestyle=:dash)
plot!(t -> bary(t, x2, λ2, sin.(x2)), -2π, 2π; label=L"y = p_2(x)", lw=3)
plot!(t -> bary(t, x3, λ3, sin.(x3)), -2π, 2π; label=L"y = p_3(x)", lw=3)
scatter!(x3, sin.(x3); markersize=5, primary=false)

8.3 Newton form & divided differences

Fix \(X = \{x_0, x_1, \cdots, x_{n} \}\). Newton polynomials are the node polynomials corresponding to the first nodes in \(X\):

\[ \begin{align} \pi_0(x) &= 1 \nonumber\\ \pi_1(x) &= \ell_{\{x_0\}}(x) = (x - x_0) \nonumber\\ \pi_2(x) &= \ell_{\{ x_0, x_1 \}}(x) = (x - x_0)(x-x_1) \nonumber\\ &\vdots \nonumber\\ \pi_n(x) &= \ell_{\{ x_0, x_1, \dots, x_{n-1} \}}(x) = (x-x_0)(x-x_1)\cdots (x-x_{n-1}) \end{align} \]

Example 8.1 Recall that the Lagrange interpolation of \(f(x) = \sin x\) on \(X = \{ 0, \frac\pi2, \pi \}\) is \(I_Xf(x) = -\frac4{\pi^2} x(x-\pi)\).

Code

f = x->sin(x)

x = [0, pi/2, pi]
y = f.(x)

p = fit(x,y)
plot(f, -2pi, 2pi,  label=L"y = \sin x", lw=2, linestyle=:dash)
plot!( p, xlims=(-2pi,2pi), label=L"y= p(x)", lw=3)
scatter!( x, y, markersize=5, primary=false)

Derive the same result using the Newton basis \(\pi_0 = 1\), \(\pi_1 = x\), and \(\pi_2 = x(x-\tfrac\pi2)\).

Notice that if \(p\) interpolates \(f\) at \(X = \{x_0,\dots,x_n\}\) and the \(x_j\) are distinct, then

\[ \begin{align} p(x) &= a_0 + a_1 (x - x_0) + a_2 (x-x_0)(x-x_1) + \cdots + a_n (x-x_0)(x-x_1) \cdots (x - x_{n-1})\nonumber\\ % &= f(x_0) + \frac{f(x_1) - f(x_0)}{x_1 - x_0} (x-x_0) + a_2 \pi_2(x) + \cdots + a_n \pi_n(x) \end{align} \]

Definition 8.1 We define the divided difference \(f[x_{0}, \dots, x_n]\) to be the leading coefficient in the polynomial interpolation \(p\in \mathcal P_n\) of \(f\) on the set of distinct nodes \(X = \{x_0,x_1,\dots, x_n\}\): that is,

\[ \begin{align} p(x) = f[x_0,\dots,x_n] x^n + q(x) \end{align} \]

where \(q \in \mathcal P_{n-1}\).

We have seen that \(f[x_0] = f(x_0)\) and \(f[x_0,x_1] = \frac{f(x_1) - f(x_0)}{x_1 - x_0}\). (Here, we just solved \(p(x_0) = f(x_0)\) and \(p(x_1) = f(x_1)\)).

Theorem 8.1 The divided difference \(f[x_{0}, \dots, x_n]\) doesn’t depend on the ordering of the interpolation nodes. Moreover, we have linearity: \((f + c g)[x_0,...,x_n] = f[x_0,...,x_n] + c g[x_0,...,x_n]\).

Proof. The polynomial interpolant \(p\in \mathcal P_n\) of \(f\) on \(X\) is independent of the ordering of the nodes.

Moreover, if \(p\) and \(q\) are the polynomial interpolants of \(f\) and \(g\), respectively, then \(p + c q\) is a polynomial interpolant of \(f+ c g\).

Theorem 8.2 Suppose \(X = \{x_0,\cdots,x_n\}\) is a set of \(n+1\) distinct interpolation nodes. Then, we have the recursion

\[ \begin{align} f[x_0, \dots, x_n] &= \frac {f[x_1, \dots, x_n] - f[x_0, \dots, x_{n-1}]} {x_n - x_0}. \end{align} \]

Proof. Let \(p \in \mathcal P_{n-1}\) be the polynomial interpolation of \(f\) on \(\{x_0,\dots, x_{n-1}\}\) and define \(g(x) := (x-x_{n})f(x)\) and \(q(x) := (x - x_{n}) p(x)\). Then \(q(x_j) = g(x_j)\) for \(j = 0, \dots, n-1\) (because \(p(x_j) = f(x_j)\)) and \(q(x_n) = 0 = g(x_n)\). Since \(q \in \mathcal P_n\), \(q\) is the polynomial interpolation of \(g\) on \(X\). Therefore, the leading coefficient of \(q\) is both \(g[x_0,\dots,x_{n}]\) (because \(q\) interpolates \(g\) on \(X\)) and \(f[x_0,\dots,x_{n-1}]\) (because \(q\) is \((x-x_{n})\) times \(p\)).

That is, we have \(\big( (x - x_n) f \big) [x_0,\dots,x_n] = f[x_0,\dots,x_{n-1}]\). By relabeling the indices (which is allowed because \(f[x_0,\dots,x_n]\) does not depend on the ordering of the interpolation nodes), we also have \(\big( (x - x_0) f \big) [x_0,\dots,x_n] = f[x_1,\dots,x_{n}]\). Therefore, by linearity we have

\[ \begin{align} (x_n - x_0) f[x_0,\dots,x_n] &= \big( (x - x_0) f - (x-x_n) f \big) [x_0,\dots,x_n] \nonumber\\ % &= \big( (x - x_0) f \big) [x_0,\dots,x_n] - \big( (x-x_n) f \big) [x_0,\dots,x_n] \nonumber\\ % &= f [x_1,\dots,x_n] - f [x_0,\dots,x_{n-1}] \nonumber \end{align} \]

8.3.1 Divided difference table

Using Theorem 8.2, we can compute all of the divided differences of \(f\) on \(X = \{x_0, \dots, x_n\}\) column by column in a divided difference table. For example, when \(n = 3\):

\[ \begin{array}{c|cccc} x_j & f(x_j) & \text{1st} & \text{2nd} & \text{3rd} \\ \hline x_0 & f[x_0] & & & \\ & & f[x_0,x_1] & & \\ x_1 & f[x_1] & & f[x_0,x_1,x_2] & \\ & & f[x_1,x_2] & & f[x_0,x_1,x_2,x_3] \\ x_2 & f[x_2] & & f[x_1,x_2,x_3] & \\ & & f[x_2,x_3] & & \\ x_3 & f[x_3] & & & \end{array} \]

Starting from the values \(f[x_j] = f(x_j)\), each new entry is the difference of its two neighbours in the previous column divided by the difference of the first and last nodes involved:

\[ f[x_j, \dots, x_{j+k}] = \frac{f[x_{j+1}, \dots, x_{j+k}] - f[x_j, \dots, x_{j+k-1}]}{x_{j+k} - x_j}. \]

Computing the whole table requires \(O(n^2)\) operations. Adding a new node \(x_{n+1}\) only adds a new row at the bottom of the table (one new entry in each column), which costs \(O(n)\) operations.

The entries along the top diagonal of the table are exactly the coefficients of the Newton form of the polynomial interpolation:

Theorem 8.3 Suppose \(X = \{x_0, \dots, x_n\}\) is a set of \(n+1\) distinct interpolation nodes. Then,

\[ I_X f(x) = \sum_{k=0}^n f[x_0, \dots, x_k] \, \pi_k(x). \]

Proof. Let \(p_k \in \mathcal P_k\) be the polynomial interpolation of \(f\) on \(\{x_0, \dots, x_k\}\). For \(k \geq 1\), \(p_k - p_{k-1} \in \mathcal P_k\) vanishes at \(x_0, \dots, x_{k-1}\), and so \(p_k - p_{k-1} = c_k \pi_k\) for some constant \(c_k\). Since \(p_{k-1} \in \mathcal P_{k-1}\), comparing the coefficients of \(x^k\) gives \(c_k = f[x_0, \dots, x_k]\). Moreover, \(p_0 = f(x_0) = f[x_0] \pi_0\). Therefore, \(I_X f = p_n = p_0 + \sum_{k=1}^n (p_k - p_{k-1}) = \sum_{k=0}^n f[x_0,\dots,x_k] \pi_k\).

Example 8.2 Let’s go back to interpolating \(f(x) =\sin x\) on \(\{0, \frac\pi2, \pi\}\). Now add \(-2\pi\) as an interpolation node and compute the new polynomial interpolant.

We compute the divided difference table with \(x_0 = 0\), \(x_1 = \frac\pi2\), \(x_2 = \pi\), and \(x_3 = -2\pi\):

\[ \begin{array}{c|cccc} x_j & f(x_j) & \text{1st} & \text{2nd} & \text{3rd} \\ \hline 0 & 0 & & & \\ & & \frac{2}{\pi} & & \\ \frac{\pi}{2} & 1 & & -\frac{4}{\pi^2} & \\ & & -\frac{2}{\pi} & & -\frac{8}{5\pi^3} \\ \pi & 0 & & -\frac{4}{5\pi^2} & \\ & & 0 & & \\ -2\pi & 0 & & & \end{array} \]

where the entries are computed using Theorem 8.2:

\[ \begin{align} f[x_0,x_1] &= \frac{1 - 0}{\frac\pi2 - 0} = \frac{2}{\pi}, \nonumber\\ f[x_1,x_2] &= \frac{0 - 1}{\pi - \frac\pi2} = -\frac{2}{\pi}, \nonumber\\ f[x_2,x_3] &= \frac{0 - 0}{-2\pi - \pi} = 0, \nonumber\\ f[x_0,x_1,x_2] &= \frac{-\frac2\pi - \frac2\pi}{\pi - 0} = -\frac{4}{\pi^2}, \nonumber\\ f[x_1,x_2,x_3] &= \frac{0 - \big(-\frac2\pi\big)}{-2\pi - \frac\pi2} = -\frac{4}{5\pi^2}, \nonumber\\ f[x_0,x_1,x_2,x_3] &= \frac{-\frac{4}{5\pi^2} - \big(-\frac{4}{\pi^2}\big)}{-2\pi - 0} = -\frac{8}{5\pi^3}. \nonumber \end{align} \]

By Theorem 8.3, the coefficients of the Newton form are the entries along the top diagonal of the table, and so

\[ \begin{align} p(x) &= 0 + \frac{2}{\pi} x - \frac{4}{\pi^2} x \big(x - \tfrac\pi2\big) \nonumber\\ &\qquad - \frac{8}{5\pi^3} x\big(x - \tfrac\pi2\big)\big(x - \pi\big). \nonumber \end{align} \]

Notice that the first three terms are exactly the interpolant from Example 8.1: adding a node only adds one new term to the Newton form.

We plot this:

Code

r = x-> - 4*x*(x-pi)/pi^2 - 8*x*(x-pi/2)*(x-pi)/(5*pi^3)

x = [0, pi/2, pi, -2pi]
y = f.(x)

plot(f, -2pi, 2pi,  label=L"y = \sin x", lw=2, linestyle=:dash)
plot!( p, xlims=(-2pi,2pi), label=L"y= p_2(x)", lw=3)
plot!( r, xlims=(-2pi,2pi), label=L"y= p_3(x)", lw=3)
scatter!( x, y, markersize=5, primary=false)

8.4 Next time….

Hermite interpolation

TO-DO

Assignment 3 online!
Exercises throughout the notes,
(Sign-up to office hours if you like)

8.5 Extra exercises

Exercise 8.5 Let \(n = 2\) and let \(X = X_{\mathrm{II}} = \big\{ \cos\frac{j\pi}{2} \big\}_{j=0}^2\) be the Chebyshev nodes of the second kind, so that \(x_0 = 1\), \(x_1 = 0\), and \(x_2 = -1\). Compute \(\lambda_0, \lambda_1, \lambda_2\) directly from the definition \(\lambda_j = \big( \prod_{k\not=j} (x_j - x_k) \big)^{-1}\) and check that they agree with (8.4).

Exercise 8.6 In the notes, we claimed that for the Chebyshev nodes \(X_{\mathrm{II}} = \big\{ x_j = \cos\frac{j\pi}{n} \big\}_{j=0}^n\) the barycentric weights \(\lambda_j := \big( \prod_{k\not=j} (x_j - x_k) \big)^{-1}\) are given by

\[ \lambda_j = \begin{cases} \frac{2^{n}}{4n} & \text{if } j = 0 \\ (-1)^j \frac{2^{n}}{2n} & \text{if } j = 1,\dots,n-1 \\ (-1)^n \frac{2^{n}}{4n} & \text{if } j = n \end{cases} \]

Prove the claim as follows:

Show that \(\lambda_j = 1 / \ell_X'(x_j)\), where \(\ell_X(x) = \prod_{k=0}^n (x - x_k)\) is the node polynomial.
Show that \(T_n'(\cos\theta) = n \frac{\sin n\theta}{\sin\theta}\). Using Exercise 7.5, deduce that \[ \ell_X(x) = \frac{2^{1-n}}{n} (x^2 - 1) T_n'(x). \]
By differentiating \(T_n(\cos\theta) = \cos n\theta\) twice, show that \(T_n\) satisfies the Chebyshev differential equation \[ (1 - x^2) T_n''(x) - x T_n'(x) + n^2 T_n(x) = 0. \]
Let \(w(x) := (x^2-1) T_n'(x)\). Show that \[ w'(x) = x T_n'(x) + n^2 T_n(x). \]
Compute \(w'(x_j)\) for \(j = 0,\dots,n\) and conclude.
Explain why we may replace \(\lambda_j\) by \((-1)^j\) (halved for \(j = 0, n\)) in the barycentric formula. Why is this a good idea when \(n\) is large?

Differentiating \(\ell_X(x) = (x - x_j) \prod_{k\not=j} (x - x_k)\) with the product rule and setting \(x = x_j\) gives \(\ell_X'(x_j) = \prod_{k\not=j} (x_j - x_k) = 1/\lambda_j\).
Differentiating \(T_n(\cos\theta) = \cos n\theta\) gives \(-\sin\theta \, T_n'(\cos\theta) = -n \sin n\theta\). Therefore, with \(x = \cos\theta\), \[ (x^2 - 1) T_n'(x) = -\sin^2\theta \cdot n \frac{\sin n\theta}{\sin \theta} = -n \sin\theta \sin n\theta = \frac{n}{2} \big( T_{n+1}(x) - T_{n-1}(x) \big) \] by Exercise 7.5. Since both sides are polynomials which agree on \([-1,1]\), they are equal, and so \(\ell_X(x) = 2^{-n}\big( T_{n+1}(x) - T_{n-1}(x) \big) = \frac{2^{1-n}}{n} (x^2-1) T_n'(x)\).
Differentiating \(-\sin\theta \, T_n'(\cos\theta) = -n \sin n\theta\) again gives \(\sin^2\theta \, T_n''(\cos\theta) - \cos\theta \, T_n'(\cos\theta) = -n^2 \cos n\theta = -n^2 T_n(\cos\theta)\). With \(x = \cos\theta\) and \(\sin^2\theta = 1 - x^2\), this is the Chebyshev differential equation on \([-1,1]\) and therefore everywhere (both sides are polynomials).
By the product rule, \(w' = 2x T_n' + (x^2-1) T_n''\). By 3, \((x^2-1) T_n'' = n^2 T_n - x T_n'\) and so \(w' = x T_n' + n^2 T_n\).
For \(j = 1,\dots,n-1\), \(T_n(x_j) = \cos j\pi = (-1)^j\) and, since \(x_j\) is an interior maximum or minimum of \(T_n\), \(T_n'(x_j) = 0\). Therefore \(w'(x_j) = n^2 (-1)^j\).

At \(x = 1\), the differential equation gives \(-T_n'(1) + n^2 T_n(1) = 0\) and so \(T_n'(1) = n^2\). Therefore, \(w'(x_0) = w'(1) = n^2 + n^2 = 2n^2\). Similarly, at \(x = -1\), we have \(T_n'(-1) = -n^2 T_n(-1) = (-1)^{n+1} n^2\) and so \(w'(x_n) = w'(-1) = (-1)^n n^2 + (-1)^n n^2 = 2 (-1)^n n^2\).

By 1 and 2, \(\lambda_j = 1 / \ell_X'(x_j) = \frac{n 2^{n-1}}{w'(x_j)}\), which gives \[ \begin{align} \lambda_0 = \frac{n 2^{n-1}}{2n^2} = \frac{2^n}{4n}, \qquad \lambda_j = \frac{n 2^{n-1}}{(-1)^j n^2} = (-1)^j \frac{2^n}{2n}, \qquad \lambda_n = \frac{n 2^{n-1}}{2(-1)^n n^2} = (-1)^n \frac{2^n}{4n}. \nonumber \end{align} \]

The barycentric formula is unchanged if every \(\lambda_j\) is multiplied by the same constant \(c \not= 0\) (the factor \(c\) cancels between the numerator and the denominator). Taking \(c = \frac{2n}{2^n}\) gives the weights \((-1)^j\), halved for \(j = 0, n\). For large \(n\), \(2^n\) overflows in floating point arithmetic (for example, 2.0^1024 == Inf) whereas the rescaled weights are all of size \(1\) or \(\frac12\).

Exercise 8.7 Let \(X = \{x_0 < \dots < x_n\}\) be the equispaced nodes on \([-1,1]\): \(x_j = -1 + jh\) for \(j = 0, \dots, n\), where \(h = \frac2n\).

Show that \(\prod_{k\not= j} (x_j - x_k) = (-1)^{n-j} h^n \, j!\, (n-j)!\), and deduce that the barycentric weights are \[ \lambda_j = \frac{(-1)^{n-j}}{h^n\, n!} \binom{n}{j}. \]
Using Exercise 8.3, explain why we may use the weights \(w_j := (-1)^j \binom{n}{j}\) in the Barycentric formula (8.3) instead. Compare the ratio \(\max_j |w_j| / \min_j |w_j|\) for these weights with the same ratio for the weights \((-1)^j \tau_j\) for Chebyshev nodes (\(\tau_j = \frac12\) for \(j = 0,n\) and \(\tau_j = 1\) otherwise) as \(n \to \infty\).
Write a function EquispacedInterpolant(f, n), analogous to ChebyshevInterpolant from the notes, which returns the polynomial interpolant of f on the equispaced nodes (using the weights \(w_j\) from 2; in Julia, binomial(n, j) computes \(\binom{n}{j}\)). Compute the maximum error \(\max_{t} |f(t) - I_Xf(t)|\) over the grid range(-1, 1, length=2001) for:
- the Runge function \(f(x) = \frac{1}{1 + 25x^2}\) with \(n = 10, 20, 40\),
- \(f(x) = e^x\) with \(n = 10, 20, 40, 60\).
Compare your results with the error estimate from Theorem 6.2 together with the bound \(\| \ell_X \|_{L^\infty([-1,1])} \leq \frac{e}{2\sqrt n} \big( \frac2e \big)^n\) for equispaced nodes from Lecture 6. Comment on what you see.

For \(k < j\), we have \(x_j - x_k = (j-k)h\) and so \(\prod_{k=0}^{j-1} (x_j - x_k) = h^j \, j!\). For \(k > j\), we have \(x_j - x_k = -(k-j)h\) and so \(\prod_{k=j+1}^{n} (x_j - x_k) = (-1)^{n-j} h^{n-j} (n-j)!\). Multiplying gives \(\prod_{k\not= j} (x_j - x_k) = (-1)^{n-j} h^n \, j! \, (n-j)!\) and therefore \[ \lambda_j = \frac{(-1)^{n-j}}{h^n \, j! \, (n-j)!} = \frac{(-1)^{n-j}}{h^n \, n!} \binom{n}{j}. \]
We have \(w_j = C \lambda_j\) with the constant \(C = (-1)^n h^n n!\) (which does not depend on \(j\)), and so the factor \(C\) cancels between the numerator and the denominator of (8.3). The smallest weights are \(|w_0| = |w_n| = 1\) and the largest is \(\binom{n}{\lfloor n/2 \rfloor} \approx 2^n \sqrt{\frac{2}{\pi n}}\). Therefore, the ratio grows exponentially: it is \(252\) for \(n = 10\), about \(1.8 \times 10^5\) for \(n = 20\), and about \(1.2 \times 10^{17}\) for \(n = 60\). For Chebyshev nodes, the ratio is \(2\) for all \(n\).
For example:

function EquispacedInterpolant( f, n )
    x = range(-1, 1, length=n+1)
    y = f.(x)
    w = [ (-1.0)^j * binomial(n, j) for j in 0:n ]

    return function ( t )
        num = 0.0
        den = 0.0
        for j ∈ 1:(n+1)
            if t == x[j]
                return y[j]
            end
            num += w[j] * y[j] / (t - x[j])
            den += w[j] / (t - x[j])
        end
        return num / den
    end
end

This gives the following maximum errors:

\(n\)	Runge	\(e^x\)	error bound for \(e^x\)
\(10\)	\(1.9\)	\(2.4 \times 10^{-10}\)	\(1.4 \times 10^{-9}\)
\(20\)	\(6.0 \times 10^{1}\)	\(1.4 \times 10^{-12}\)	\(3.5 \times 10^{-23}\)
\(40\)	\(1.0 \times 10^{5}\)	\(3.9 \times 10^{-7}\)	\(8.2 \times 10^{-56}\)
\(60\)		\(2.0 \times 10^{-1}\)	\(9.5 \times 10^{-93}\)

Here, the error bound is \(\frac{e}{(n+1)!} \cdot \frac{e}{2\sqrt n} \big(\frac2e\big)^n\) (using \(\max_{[-1,1]} |f^{(n+1)}| = e\)). For the Runge function, the error grows exponentially: this is the Runge phenomenon from Lecture 6 (the derivatives of the Runge function grow too quickly for the error estimate to give convergence). For \(e^x\), the exact interpolant converges extremely quickly, and the computed error decreases until \(n \approx 20\). After that, the computed error grows even though the exact interpolant is more and more accurate. This is caused by rounding errors: perturbing the data \(f(x_j)\) by \(\delta_j\) changes the interpolant by \(\sum_j \delta_j \ell_j(x)\), and for equispaced nodes \(\max_x \sum_j |\ell_j(x)|\) grows exponentially in \(n\) (like the ratio of the weights in 2). Rounding errors of size \(10^{-16}\) are therefore amplified by a factor of order \(2^n\). For Chebyshev nodes, this amplification factor only grows like \(\log n\) (see Berrut and Trefethen (2004)).
